Live-Cell Migration Tracking

live_cell_tracking compares migration tracks from Ultrack and btrack adapters on a short 2D label movie. The workflow is scoped to migration metrics: it does not perform lineage or division analysis.

Use this tutorial when you already have segmentation labels over time and want to evaluate track continuity, displacement, and speed. For a real example, use selected frames from a 2D Cell Tracking Challenge dataset or another TYX label movie with comparable object density.

The workflow starts from labels over time, not raw movie frames.

Run the workflow with a label stack:

python example_workflows/live_cell_tracking/workflow.py --label-image data/ctc_label_movie.tif

Prepare a TYX label image where each frame contains integer object labels. If you start from raw fluorescence frames, add a segmentation workflow before this tracking workflow rather than making the tracking adapter infer detections implicitly.

Pipeline walkthrough

flowchart LR
  labels[TYX label movie]:::source --> objects[Labels to tracking objects]:::process
  objects --> ultrack[Ultrack adapter]:::tracker
  objects --> btrack[btrack adapter]:::tracker
  ultrack --> ulmetrics[Ultrack migration metrics]:::metric
  btrack --> btmetrics[btrack migration metrics]:::metric
  ulmetrics --> table[Combined migration metrics]:::metric
  btmetrics --> table
  classDef source fill:#e7f0ff,stroke:#4b73b9,color:#1b2f55
  classDef process fill:#edf8ef,stroke:#4d8f5b,color:#173d20
  classDef tracker fill:#f3eafd,stroke:#7d57a8,color:#332047
  classDef metric fill:#ffeceb,stroke:#b85b52,color:#4d201c

The adapters keep library-specific tracking behind explicit nodes. That makes it possible to compare tracker outputs while keeping the downstream migration metrics consistent.

What you will inspect

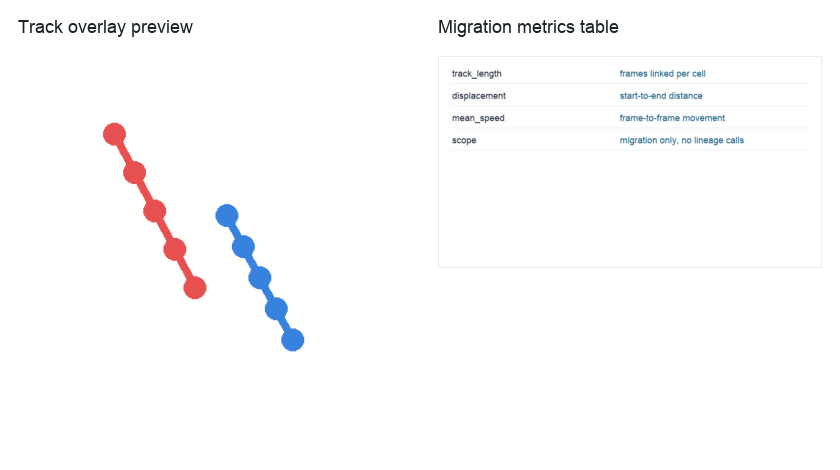

Track overlays show whether object identities remain continuous; the table summarizes motion after those identities are assigned.

Inspect the track table before interpreting speed or displacement. A single identity swap can create plausible-looking aggregate metrics while corrupting the movement history for individual cells.
